Product information

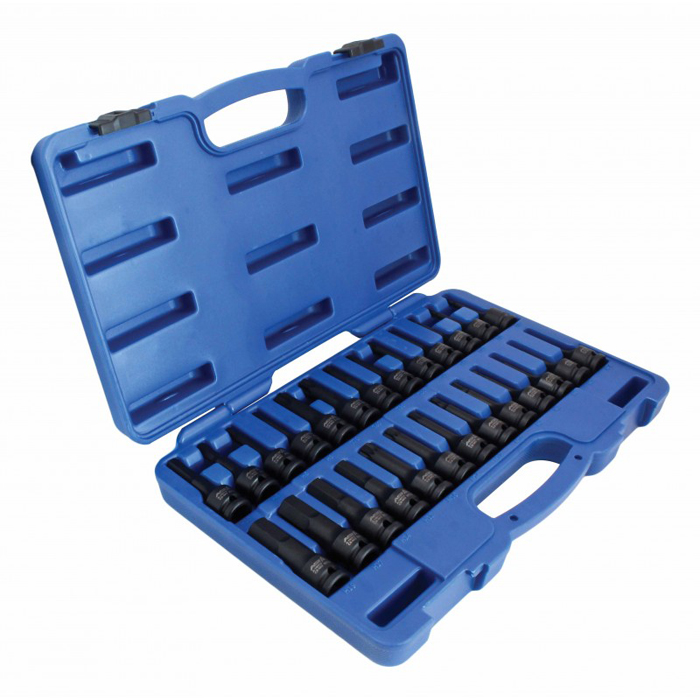

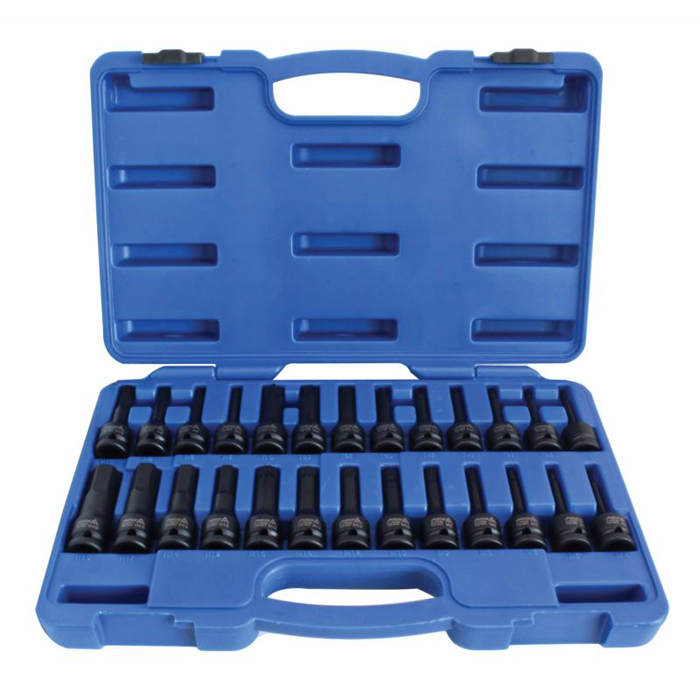

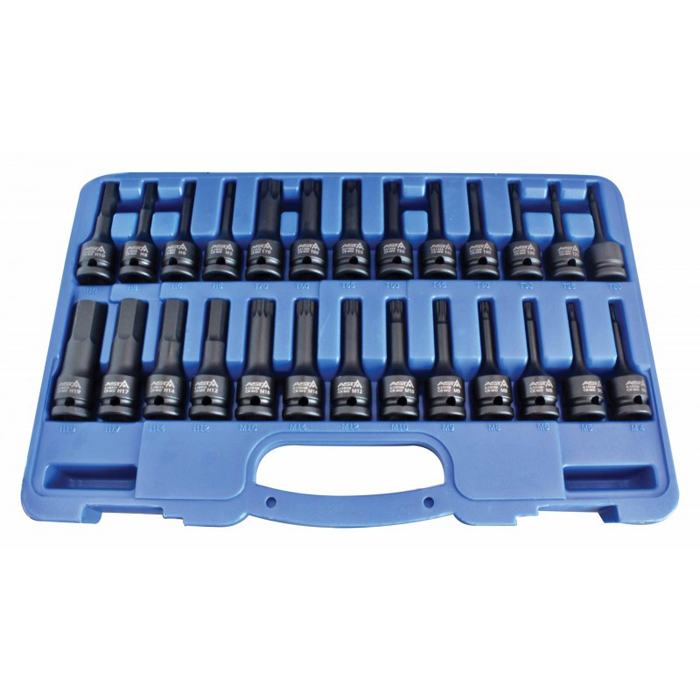

Set contains:
TORX socket wrenches: T20, T25, T30, T40, T45, T50, T55, T60, T70
XZN socket wrenches: M4, M5, M6, M8, M9, M10, M12, M14, M16
HEX socket wrenches: H5, H6, H8, H10, H12, H14, H17, H19
Parameters:
length: 75mm
material: chrome molybdenum steelTthe sockets have space for a pin and a locking ring
| NR KAT | SIZES | D1 | D2 | MAX TORQE [Nm] |
|---|---|---|---|---|
| 531420 | T20 | 78 | 10 | 37.41 |
| 531425 | T25 | 78 | 10 | 37.41 |
| 531430 | T30 | 78 | 10 | 37.41 |
| 531440 | T40 | 78 | 10 | 63.31 |
| 531445 | T45 | 78 | 12 | 103.49 |
| 531450 | T50 | 78 | 14 | 148.86 |
| 531455 | T55 | 78 | 14 | 256.56 |
| 531460 | T60 | 78 | 14 | 444.92 |
| 531470 | T70 | 78 | 20 | 700.21 |
