| Info | Compatible with |
Product information
Specifications
| Bolt Hole Circle Ø [mm]: | 114,3 |
| Bore Ø [mm]: | 12,7 |
| Brake Disc Thickness [mm]: | 16 |

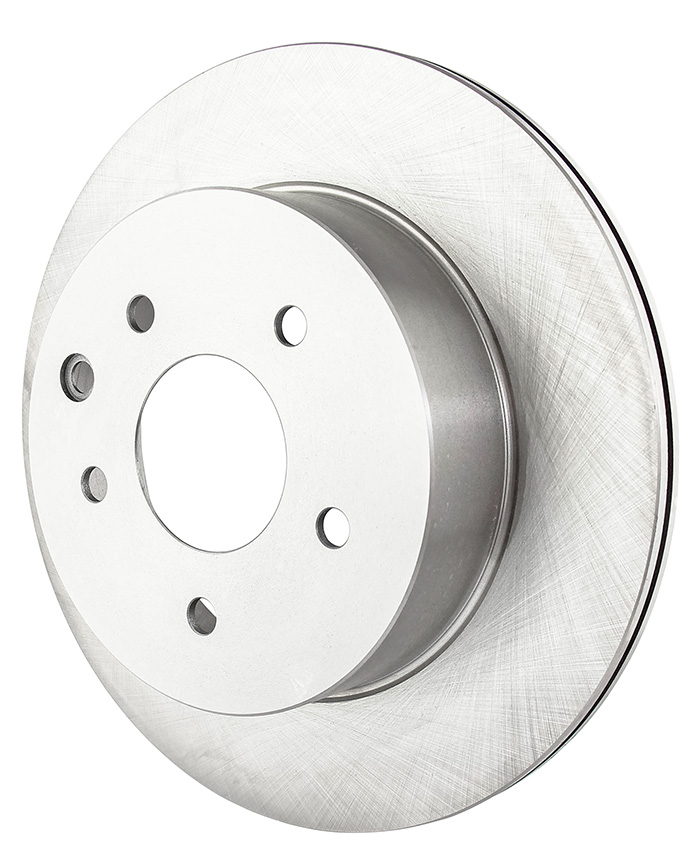

| Brake Disc Type: | Vented |
| Centering Diameter [mm]: | 68 |
| Fitting Position: | Rear Axle |
| Height [mm]: | 62 |
| Hole Ø [mm]: | 114,3 |
| Hole-Ø [mm]: | 12,7 |
| Inner Diameter [mm]: | 172 |
| Minimum thickness [mm]: | 14 |
| Number of bolts/screws: | 292 |
| Number of Holes: | 5 |
| Original number: | 43 20 000 16R , 43 20 031 12R , 43 20 65H A0A , 432000016R , 43206-3NL0A , 43206-3NL0B , 43206-8H304 , 43206-8H305 , 43206-8H700 , 43206-8H701 , 43206-8H702 |
| Outer Diameter [mm]: | 292 |
